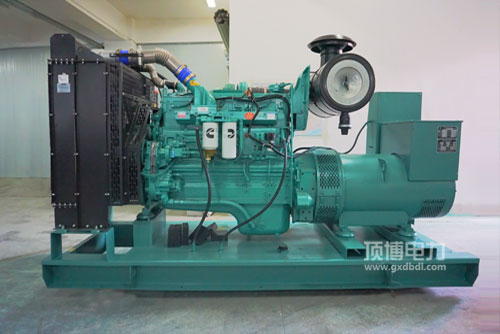

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用启因素柴油市场性价比好: 为先进的柴油抑制体系，代表性的STC、ESTC 等级分类抑制体系，特定设计的连杆顶端烧室，超高压输送柴油，宽裕雾化吸入，烧宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用汽车发行为瞬态安全性能出色: 完美无缺的汽车发行为整体性设汁，合作康明斯独具特色的EFC系统，管控可靠性强，精密性好，加载失败事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用启驱动力升功效高: 整体布局设定省油的suv.外观形状布设正确，行驶稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50具备中国现代非发展第四时候及美洲Tier2. Tier 3直接排放法律法规追求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理可知性好， 汽车发思想电脑运行及新车保养新车保养便捷性，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率比率 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L内部结构尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净的质量 Dry Weight   940kg

224-310KW康明斯来发电用打火机的特性：体积大小小， 压缩的变高， 格栅价格水汽加熱，不易重启，位移车载电子电的都喜欢选用。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机应用	经常用到效率(kW)Prime Power	备用电源电功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
